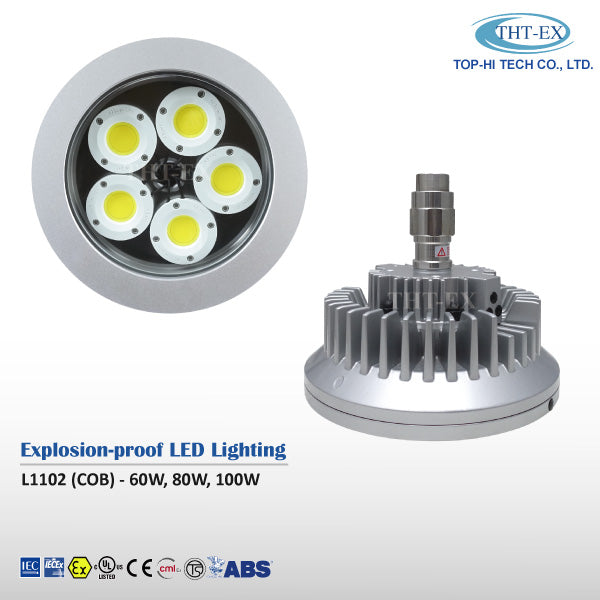

Explosion Proof LED Lighting L1102 100W COB

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex db IIC T5 Gb
• Ex tb IIIC T95˚C Db

ATEX Certification

• II 2 G Ex db IIC T5 Gb
• II 2 D Ex tb IIIC T95˚C Db

UL Certification

• UL844 - Class I, Division 1 (Group B, C and D) / Class I, Division 2 (Groups A, B, C and D) / Class II, Division 1 (Group E, F and G) / Class II, Division 2 (Group F and G) / Class III
• UL60079 - Zone 1, AEx d IIB+H2 / Zone 21, AEx tb IIIC
• UL1598

CML Certification

• Ex d IIC T5 Gb
• Ex tb IIIC T95˚C Db

TS Certification

• Ex d IIC T5 Gb
• Ex tb IIIC T100˚C Db

ABS Certification

• ABS only for Marine LED Light

Specification

• Volt.: 24V / 100V / 110V / 120V / 208V / 200V / 220V / 277V / 480V AC
• Watt.: 60W / 80W / 100W
• Amps: 60W (0.13A~2.5A) / 80W (0.17A~3.33A) / 100W (0.21A~4.17A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9 / cos≧0.87(480V)

Ambient Temprature

• -20ºC~+40ºC, T5
• CID1: -40°C ~ +40°C, T5 / CID2: +40°C, T4 / CIID1: +40°C, T5 (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 95 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-110° / Y-110°

Light Features

• AC-In LED (Driver-less) technology increases efficiency, reduces maintenance costs & environmentally friendly.
• Suitable for high humidity, high temperature and dusty locations.
• Superior corrosion resistance.
• Compact size & lightweight 40% less than conventional lighting.

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Group B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Group E, F and G)
• Class II, Division 2 (Group F and G)
• Class III
