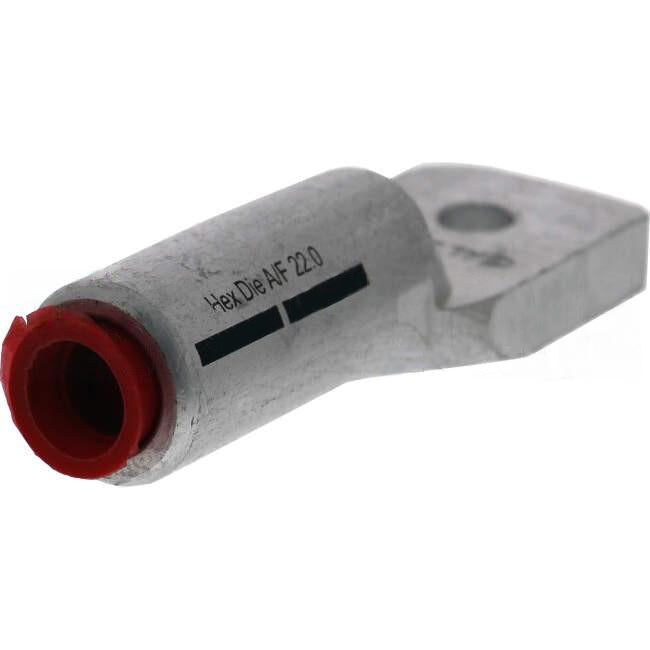

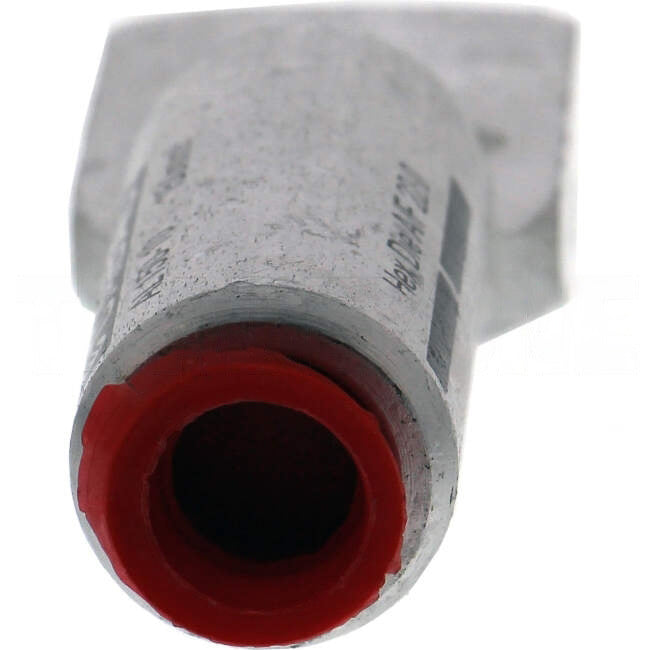

Cabac 150mm Aluminium Lug With 10mm Hole Each

For stranded sector and circular stranded Aluminium conductor.

CABAC Aluminium Lugs are manufactured by a forging process from solid 99.6% pure electrical grade Aluminium rod. This eliminates any imperfections in the metal structure which are often found in cast Aluminium lugs. The long-term electrical reliability is improved, eliminating future hot joints. Featuring a unique 'funnel' entry, stranded sector cable can be easily inserted into the barrel, and most importantly the lug palm can be orientated in any direction.

The barrel is chemically treated to reduce contact resistance, and is filled with jointing compound and capped. Before crimping, the conductors should be scratch brushed.

The lugs should be crimped with standard hexagonal dies, crimping from the palm outwards to force jointing compound into the conductors.

FEATURES:

Stranded sector cables insert easily into barrel which can then be orientated in any direction
Chemically treated to reduce contact resistance
Crimp with standard hexagonal dies - from palm outwards
We can punch any stud in palm of lug on request
Forged aluminium lug with funnel entry design.

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cabac
• Part Number -AL150-10
• Cable Size mm 150mm
• Lug Type Standard
• Stud Size 10mm

Shipping Information

• Weight (kg) 0.1210
• Length Packaging (mm) 105
• Height Packaging (mm) 36
• Width Packaging (mm) 25
• Barcode 9318674742746
• Barcode (Secondary) 9318674501688
