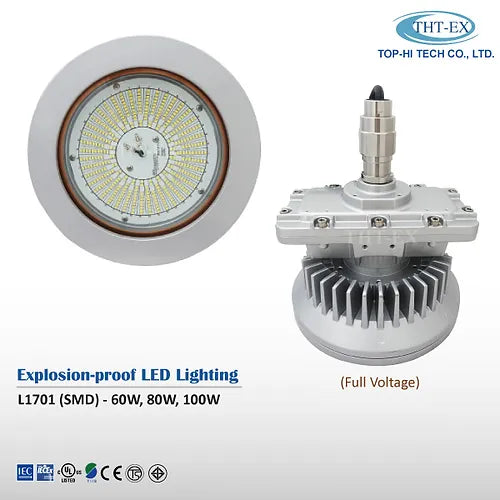

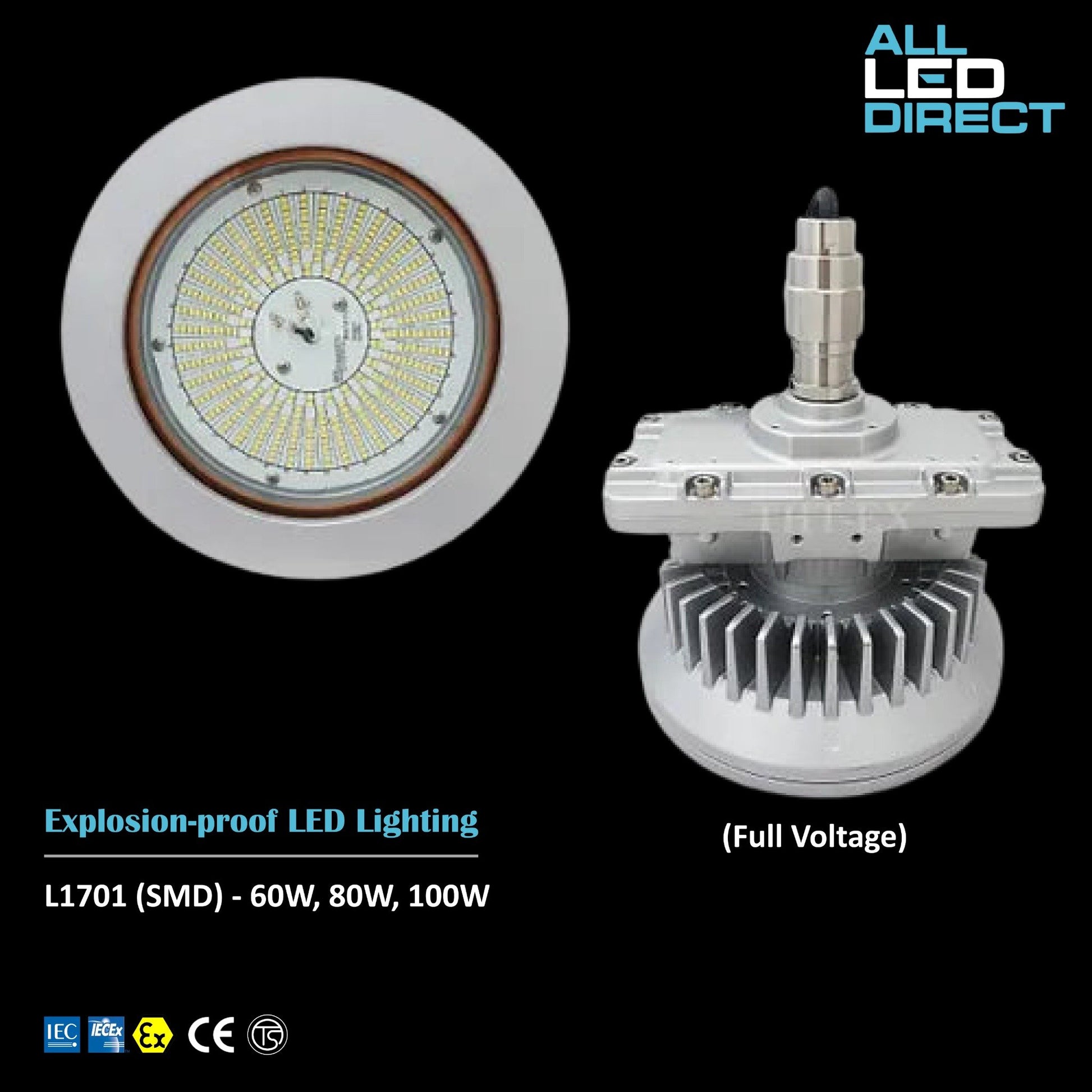

Explosion-proof LED Light L1701 SMD

Light Features

• Full Voltage Explosion-proof LED Lighting for Zone 1
• High luminous efficiency and low conversion loss rate
• Provide safe illumination in hazardous areas and other high humidity, dusty locations

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Group B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Group E, F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex db IIC T5 Gb
• Ex tb IIIC T95°C Db
• Ex db IIC T6 Gb
• Ex tb IIIC T80°C Db

UL Certification

• UL844 - Class I, Division 1 (Group B, C and D) / Class I, Division 2 (Groups A, B, C and D) / Class II, Division 1 (Group E, F and G) / Class III
• UL1598
• UL8750

TIIS Certification

• Ex db IIC T5 Gb

TS Certification

• Ex db IIC T4...T6 Gb
• Ex tb IIIC T130˚C...T85˚C Db

TISI Certification (Certificate is issuing)

• Ex db IIC T5 Gb
• Ex tb IIIC T95°C Db

Specification

• Volt.: 100V~277VAC (Full Voltage)
• Watt.: 60W / 80W / 100W
• Amps: 60W (0.21A~0.60A) / 80W (0.28A~0.80A) / 100W (0.36A~1.00A)
• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Rating

• -20°C ~ +55°C -----T6 (60W / 80W)
  -20°C ~ +55°C -----T4 (100W)
  -20°C ~ +40°C -----T5 (100W)
• CID1: -25°C ~ +40°C, T6 / CID2: -25°C ~ +40°C, T5 / CIID1: +40°C, T6 (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 100 (Warm White) / ≧ 110 (Cool White)
• Beam Angle : X-110° / Y-110°
