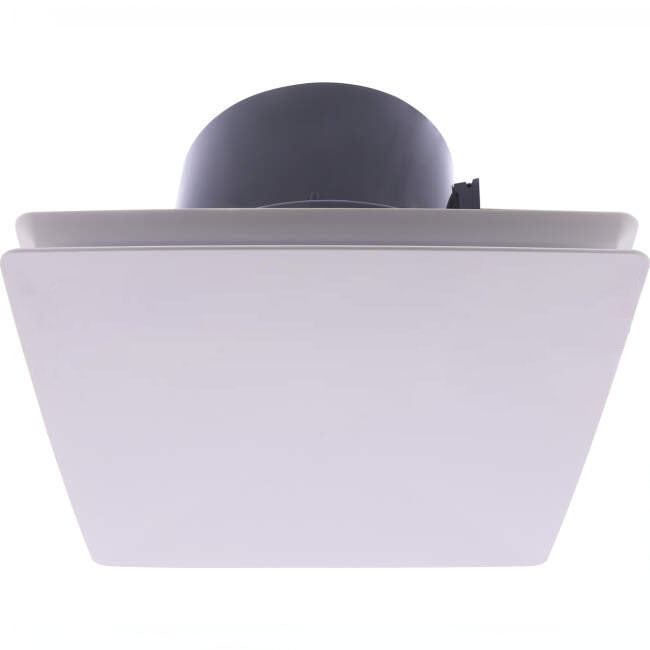

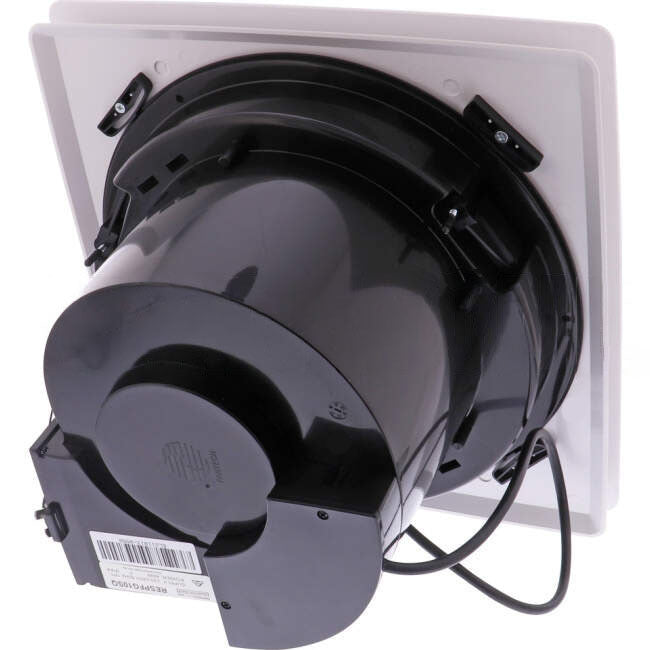

Fantech RAPID RESPONSE 250 Header Box Ceiling Mounted Fan with Square Grille

The stylish and modern Rapid Response ceiling mounted header box fan is the quietest and most powerful in its class. Its fully optimised inlet cone and centrifugal impeller design maximises air pressure that ensures rooms are quickly cleared of steam and unpleasant odours. It includes features such as a unique swing clip and removable spigot that makes it very easy to install into a standard 10" round fan cut out.

Features

• Advanced impeller and housing design provides powerful air flow and minimises noise
• High strength swing clips make installation easy
• Low resistance non-return backactive damper maximises air flow performance
• Easy to remove diffuser makes cleaning simple
• Can be retrofitted into a standard 10" round fan cut out
• Fitted plug and lead simplifies installation

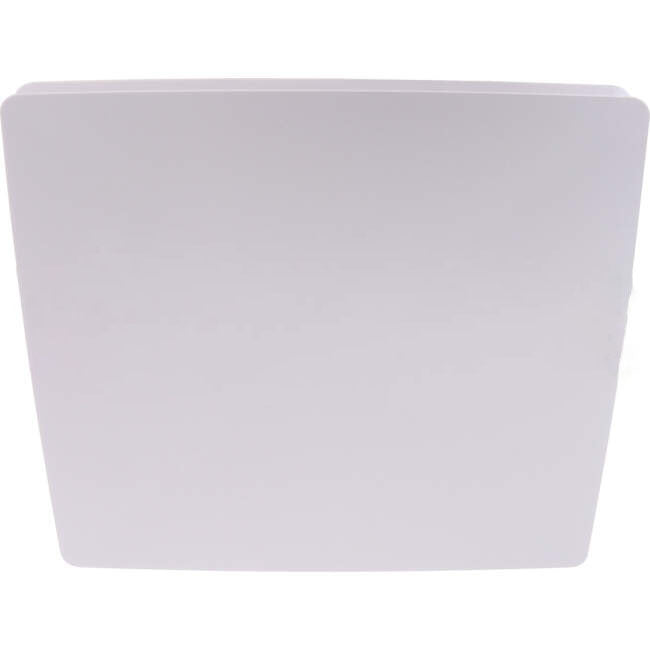

• Square diffuser can be easily rotated to align with walls
• Available with a modern square or round diffuser
• Available with a 3 to 15 minute adjustable run-on timer

Construction
Housing and grille are made from injected moulded plastic.

Fans are forward-curved centrifugal, driven by squirrel cage motor.
Motors
Type - squirrel cage induction motor
Electricity supply - 230V, single-phase, 50Hz
Bearings - sealed for life, ball
Internal Thermal Protection
Automatic reset thermal protection is fitted as standard
Testing
Air flow to ISO5801: 2007
Noise to ISO3744: 2010
