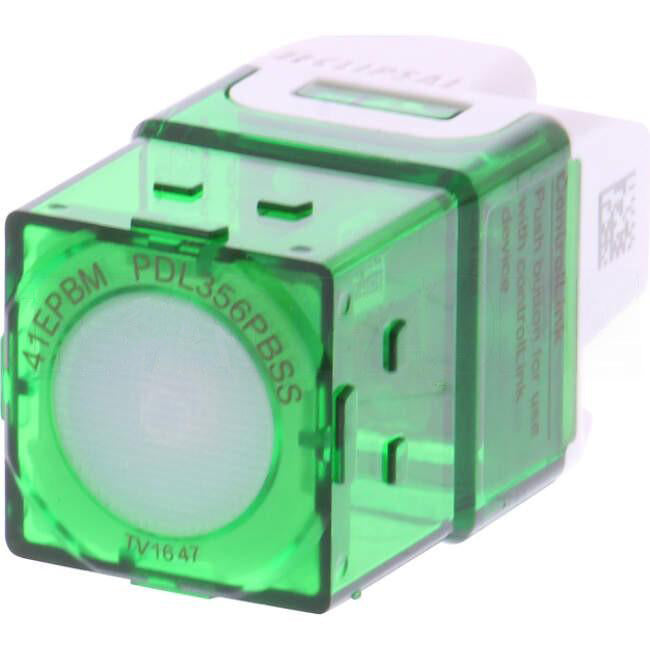

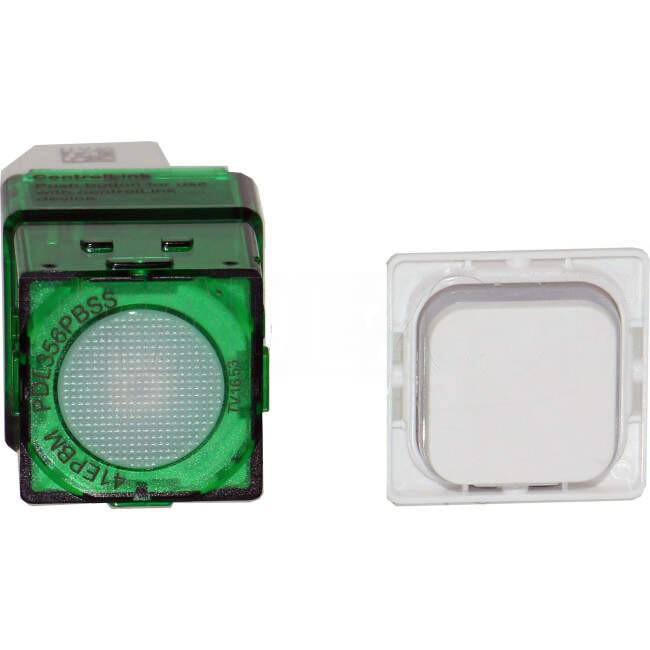

Clipsal 240 Volt ICONIC Push Button Control Link Switch Mech White

Brand Name Clipsal Iconic
Product or component type Momentary switch
Wiring device mounting Flush
Device presentation Mechanism
Actuator Pushbutton
Range compatibility Clipsal Iconic
Fixing mode Clip-in
Colour tint Vivid White
Surface finish Glossy
Type of packing Box
Sale per indivisible quantity 1
Ambient air temperature for storage [0,60] deg C
Control Method Remote pushbutton for ControlLink
Rated operational voltage 240 V, AC, 50Hz
Load type No Load - Control Only
Power range 150mA W
Ambient air temperature for operation      [0,45] deg C
Ambient humidity for operation [0,90] Percent
Connection type Termnals
Number of terminals 2
Shape of screw head Square drive + phillips head
Material Top Case (Green) - PC (Makrolon® 2407), UL94 V-2
Height 23 mm
Width 23 mm
Depth 40 mm
Embedding depth 38 mm
Standards AS/NZS 60669.2.1
ControlLink capable Yes
Max controlLink cable distance 30 metres
LED Indicator No

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal
• Part Number - 41EPBM-VW
• Also Known As Mechanism Switch Mechanism Switching Mech Switching Mechs Switch Mechanisms Clipsal Iconic CLI41EPBM-VW
• Colour White
• Engraved No
• Illuminated No
• Series Clipsal Iconic
• Single Or Double Pole Single Pole
• Switch Type Push Button

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0480
• Length (mm) 23
• Height (mm) 23
• Width (mm) 32
• Length Packaging (mm) 85
• Height Packaging (mm) 65
• Width Packaging (mm) 40
• Barcode 9311554788216
• Barcode (Secondary) 9311554789022
• Barcode (Tertiary) 19311554788213
