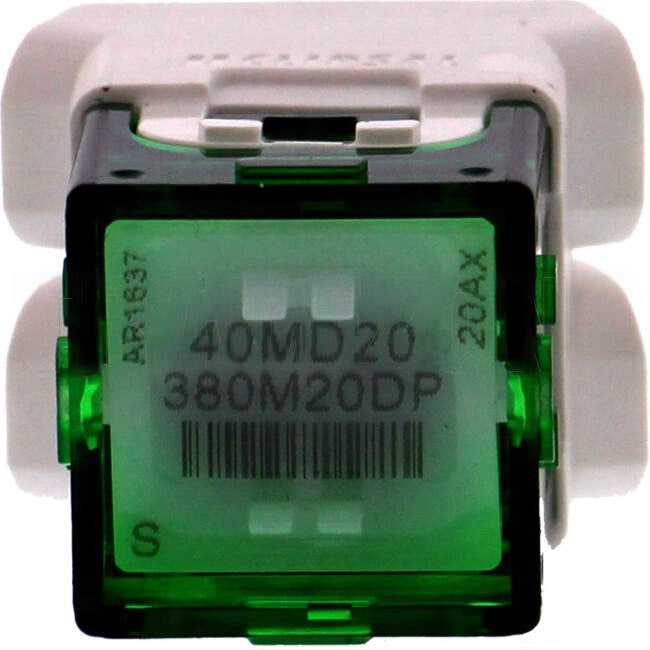

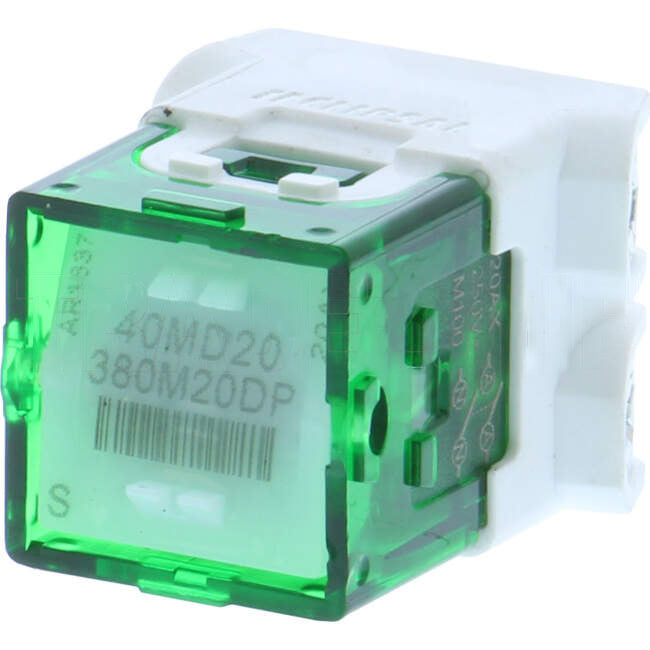

Clipsal 20 Amp ICONIC Double Pole Rocker Switch Mech White

Depth 32 mm
Height 23 mm
Material Switch Housing - PC (polycarbonate)
Switch Housing - PA66
Rated current 20AX
M100 A
Surface treatment Untreated
Switch function 1way
Width 23 mm
Brand Name Clipsal Iconic
Product or component type Switch mechanism
Device mounting Locking bar
Device presentation Mechanism
Fixing mode Locking bar
Surface finish Matt
Type of packing Polybag
Quantity per set Set of 20
Sale per indivisible quantity 1
Ambient air temperature for storage [0deg. - 60deg.] deg C
Dielectric strength 5000 V
Ambient air temperature for operation [0deg. - 45deg.] deg C
Relative humidity [10percent - 95percent] percent
Electrical durability 20000 cycles
Connections - terminals Screw terminals
Shape of screw head Philips No 2 (PH2)
square drive no 1 (SQ1)
Clamping connection capacity 1.5 mm2 - stranded
1.5 mm2 - flexible
1.5 mm2 - rigid
Wire stripping length 10mm mm
Product weight 0.016 kg
Standards AS/NZS 60669
Product certifications RCM
[Ue] rated operational voltage 250V, AC, 50Hz
Load type Lighting
fluorescent lighting
inductive loads
Number of terminals 4
Device application Lighting
appliances
small motor loads
Additional information Double pole
Provided equipment Switch mechanism

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal
• Part Number - 40MD20
• Also Known As Mechanism Switch Mechanism Switching Mech Switching Mechs Switch Mechanisms Clipsal Iconic CLI40MD20
• Amperage Range 20 Amps
• Colour White
• Engraved No
• Illuminated No
• Series Clipsal Iconic
• Single Or Double Pole Double Pole
• Switch Type Rocker

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0290
• Length (mm) 23
• Height (mm) 23
• Width (mm) 32
• Length Packaging (mm) 30
• Height Packaging (mm) 17
• Width Packaging (mm) 40
• Barcode 9311554790905
• Barcode (Secondary) 9311554786571
• Barcode (Tertiary) 9311554809577
